Fusion Bonded Epoxy Tanks for Biological Wastewater Treatment: Optimal Containment for High-Rate Reactors

Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: CEC TANKS
Chứng nhận: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Số mô hình: J2016012311
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 1SET
Giá bán: $5000~$20000 one set
chi tiết đóng gói: PE poly-foam giữa mỗi hai tấm thép; pallet gỗ và hộp gỗ
Thời gian giao hàng: 0-60 ngày sau khi nhận tiền gửi
Điều khoản thanh toán: L/C, T/T.
Khả năng cung cấp: 60 bộ mỗi tháng

Thông tin chi tiết

Nguồn gốc Trung Quốc Hàng hiệu CEC TANKS
Chứng nhận ISO 9001:2008, AWWA D103 , OSHA , BSCI Số mô hình J2016012311
Phạm vi pH: Một bảng điểm pH 3-11, bảng cấp độ AA pH: 1-14 Độ dày lớp phủ: Hai lớp phủ bên trong và bên ngoài
Kháng ăn mòn: xuất sắc ! Thích hợp cho nước thải nước muối, nước biển, dầu thô lưu huỳnh cao, cáo muối, các hợp ch Sự bám dính: 3,450N/cm
Tính thấm: khí và chất lỏng không thấm cuộc sống nghiêm trọng: Hơn 30 năm
Làm nổi bật:

fusion bonded epoxy wastewater tanks

,

biological treatment epoxy tanks

,

high-rate reactor containment tanks

Mô tả sản phẩm

Fusion Bonded Epoxy Tanks for Biological Wastewater Treatment: Optimal Containment for High-Rate Reactors

Biological wastewater treatment forms the core of modern water purification, relying on microbial communities to break down organic contaminants.1 This process is essential across municipal, agricultural, and industrial sectors. Success hinges on providing an optimal containment environment—one that is chemically inert, structurally sound, and capable of withstanding the dynamic, often corrosive, conditions within high-rate reactors. Traditional containment methods often degrade under the combined stress of biogases, continuous mixing, and Fusion Bonded Epoxy Tanks for Biological Wastewater Treatment: Optimal Containment for High-Rate Reactors 0volatility. The Fusion Bonded Epoxy (FBE) Tank is engineered to meet these precise demands.2 At Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), we utilize FBE bolted steel technology to deliver durable, non-leaching vessels that maximize biological efficiency and secure the long-term integrity of every reactor type.3

The Demanding Environment of Biological Reactors

Containment infrastructure used for biological wastewater treatment must survive continuous operational challenges:



Corrosion from Biogases: In anaerobic systems, the breakdown of organic matter produces high concentrations of gases, notably hydrogen sulfide (4Fusion Bonded Epoxy Tanks for Biological Wastewater Treatment: Optimal Containment for High-Rate Reactors 1).5 When Fusion Bonded Epoxy Tanks for Biological Wastewater Treatment: Optimal Containment for High-Rate Reactors 2interacts with moisture in the reactor headspace, it forms highly corrosive sulfuric acid. This threat requires a coating with permanent acid resistance.







Mechanical and Hydraulic Stress: High-rate reactors, such as Activated Sludge or Upflow Anaerobic Sludge Blanket (UASB) systems, rely on continuous, vigorous mixing or rapid flow to maintain microbial health. The tanks must be structurally robust to handle the installation and long-term operation of heavy mechanical equipment (mixers, aerators) and fluctuating hydraulic loads.





Microbial Inhibition: The success of biological wastewater treatment depends entirely on maintaining a healthy, stable environment. The tank lining must be chemically inert and non-leaching to ensure that no compounds contaminate the water or inhibit sensitive microbial activity.





Fusion Bonded Epoxy Tanks for Biological Wastewater Treatment: Optimal Containment for High-Rate Reactors 3Volatility: Many biological processes, particularly anaerobic digestion or nutrient removal, involve significant 6Fusion Bonded Epoxy Tanks for Biological Wastewater Treatment: Optimal Containment for High-Rate Reactors 4 shifts.7 The containment material must maintain its integrity across a wide range of acidic and alkaline conditions without compromise.





The solution must provide optimal containment that guarantees the structural and chemical stability required for microbial life and continuous operation.



The FBE Solution: Optimal Containment for High-Rate Reactors

Center Enamel’s Fusion Bonded Epoxy Bolted Steel Tanks are engineered to meet the demanding requirements of biological wastewater treatment, ensuring optimal containment for high-rate reactors:



Superior Resistance to Sulfuric Acid: The FBE coating is a dense, non-porous thermoset polymer that is molecularly bonded to the steel.8 This high-performance barrier provides permanent defense against the corrosive attack from sulfuric acid and organic acids prevalent in both aerobic and anaerobic biological systems.







Structural Integrity for Equipment Loads: Constructed from high-tensile, factory-engineered steel, FBE tanks offer the superior structural strength required to safely install and operate heavy internal equipment like large mixers, diffusers, and aeration grids common in high-rate reactors.9







Chemically Inert and Non-Leaching: The FBE lining is chemically inert, ensuring that the tank wall does not leach any compounds that could inhibit or poison the sensitive microbial population, guaranteeing the highest possible biological efficiency.10







Ideal for Anaerobic Digestion: The bolted design, when properly sealed, provides an essential gas-tight structure, making FBE tanks perfect for biogas collection in anaerobic digestion processes while resisting the internal corrosive effects of the biogas itself.11







Rapid, Cost-Effective Deployment: The modular design ensures fast, predictable construction with minimal on-site waste.12 This reduces project timelines and allows biological wastewater treatment facilities to be deployed quickly or expanded efficiently.13







Product Industry Application: FBE Tanks in Biological Reactor Infrastructure

The resilience and chemical inertness of FBE tanks make them the preferred choice across all major biological wastewater treatment technologies:



Anaerobic Digesters (AD/UASB): Serving as the main reactor vessels for breaking down high-organic load, utilizing the tank's gas-tight, acid-resistant properties for biogas capture and process stability.14







Aeration Basins (Activated Sludge): Providing the large-volume, structurally sound containment necessary for the aerobic treatment stage, resisting the stress from continuous aeration and mixing.





Sequential Batch Reactors (SBRs): Used where the treatment process occurs sequentially within a single tank, leveraging the FBE lining's resistance to rapid Fusion Bonded Epoxy Tanks for Biological Wastewater Treatment: Optimal Containment for High-Rate Reactors 5and load changes across the different phases.





Membrane Bioreactors (MBRs): FBE tanks provide the primary containment for the biological phase, utilizing their structural integrity to support the complex membrane filtration equipment.15

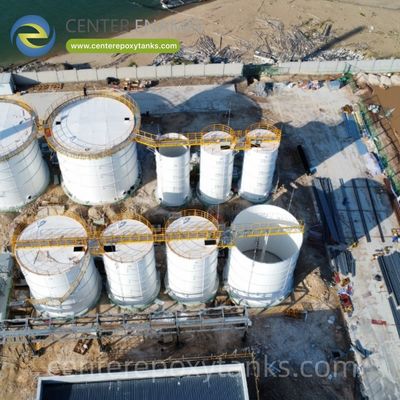

Project Case Studies: FBE Tanks in Biological Reactor Infrastructure

Center Enamel has provided high-capacity, chemically resilient reactor containment solutions for major energy and environmental projects centered on biological wastewater treatment.

Project Description Project Scale & Quantity
Jiangsu Xuzhou Biogas Project A massive energy recovery installation consisting of 4 units with a total capacity of 30,532 cubic meters, providing optimal containment for large-scale anaerobic biological reactors.
Inner Mongolia Xing'an League Bio-natural Gas Project This critical infrastructure utilized 4 units with a total capacity of 16,760 cubic meters, specifically engineered for the gas-tight, chemically resistant environment of bio-natural gas high-rate reactors.
Shandong Heze Biogas Project We supplied a high-performance solution consisting of 2 units with a total capacity of 15,266 cubic meters, deployed for the secure, durable management of centralized biological digestion processes.



Center Enamel's Role in Process Efficiency and Reactor Integrity

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is committed to supplying infrastructure that directly enhances the efficiency and longevity of biological wastewater treatment.16 Our FBE tanks are manufactured with uncompromising quality control, guaranteeing a molecularly-bonded, high-performance coating that provides a permanent defense against corrosion and chemical inhibition.17 By choosing Center Enamel, clients invest in a vessel that guarantees optimal containment for high-rate reactors, securing process stability, reducing maintenance costs, and ensuring compliance for decades.



Conclusion: Structural Stability for Microbial Success

The success of biological wastewater treatment hinges on providing a stable, resilient environment for sensitive microbial communities. The Fusion Bonded Epoxy Tank, with its superior resistance to biogases, high structural strength for equipment loading, and chemically inert lining, is the definitive solution for delivering optimal containment for high-rate reactors. It provides treatment facilities with a durable, low-maintenance asset that protects against corrosion and structural failure, securing the essential foundation for effective environmental remediation.18

To deploy a high-integrity containment system engineered for the unique chemical and structural demands of biological reactors, choose Center Enamel's Fusion Bonded Epoxy Bolted Steel Tanks. Contact us today to optimize your biological treatment infrastructure.
